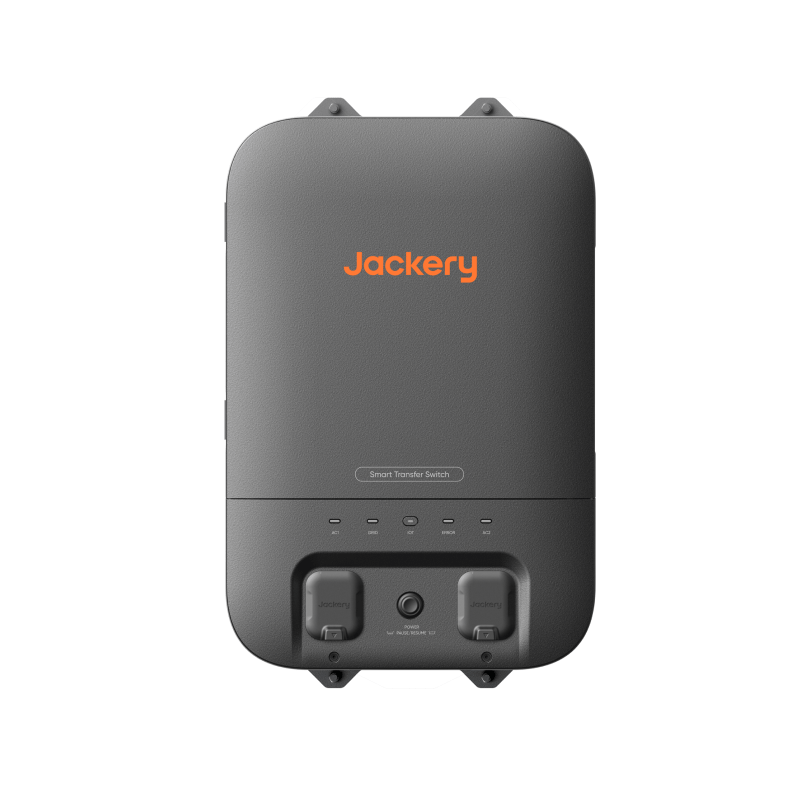

Jackery Smart Transfer Switch

DESCRIPTION

The Jackery Smart Transfer Switch integrates an Explorer 5000 Plus system with selected home circuits for fast backup-power transfer and app-connected monitoring.

KEY FEATURES

• Compatible with the Explorer 5000 Plus series
• Transfer time of 20ms or less
• Supports up to 12 protected circuits
• 120V/240V split-phase operation
• Wi-Fi and Bluetooth connectivity
• NEMA Type 1 indoor enclosure

SPECIFICATIONS

• Maximum grid input: 100A
• Maximum power-station input: 60A
• Maximum home output: 60A
• Maximum station output: 33.4A
• Operating temperature: -4°F to 104°F
• Approximate weight: 25.57 lb

WHAT’S INCLUDED

Jackery Smart Transfer Switch and manufacturer-supplied installation components.

INSTALLATION

Professional installation is recommended. Confirm vehicle, panel, circuit, connector and power-station compatibility before installation or use, and follow the current Jackery manual and all applicable electrical codes.

Find a Local Installer

WARRANTY

Jackery’s manufacturer warranty applies to this product when purchased through The YardSpace Co. The exact coverage period and any registration requirement depend on the accessory’s component-specific terms and are being confirmed through Power77.

Coverage generally includes defects in materials or workmanship under normal use. Accidental damage, unauthorized modifications or repairs, normal wear, and damage caused by incompatible or non-certified accessories are generally excluded.

Keep your order confirmation and the product serial number. If you experience a problem, contact The YardSpace Co. first. We’ll verify your purchase, explain any registration requirements, and coordinate warranty support through Power77, our authorized Jackery distributor.
