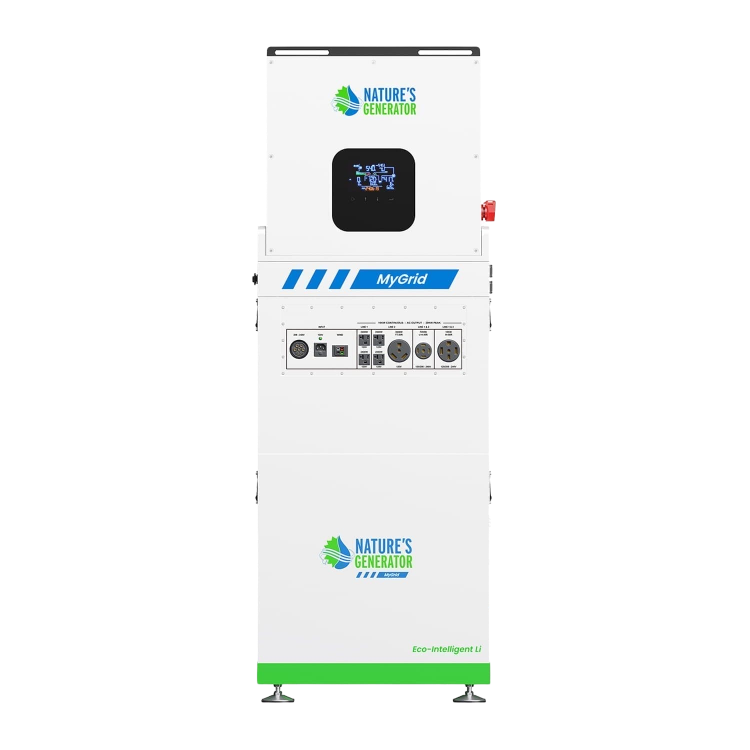

Nature’s Generator MyGrid 10K Gen 2 Whole Home Generator

DESCRIPTION

The Nature’s Generator MyGrid 10K Gen 2 is an expandable whole-home backup and energy-storage system with high-capacity LiFePO₄ storage. It supports 120V/240V residential power, compatible 120V/208V applications and multiple charging sources.

• Returns are subject to The YardSpace Co. Return Policy and Nature’s Generator authorization and restrictions.

KEY FEATURES

• 10,000W continuous pure sine wave output with 20,000W peak output.
• 10,496Wh LiFePO₄ battery storage.
• Expandable to 20,000W continuous output and 73.4kWh of battery storage.
• Supports AC, solar, wind and compatible external generator charging.
• Dual-MPPT solar charging supports up to 12,000W of compatible solar input.
• AC-coupling and rapid-shutdown support for compatible solar systems.
• Integrated battery management and system-status display.

SPECIFICATIONS

• Battery capacity: 10,496Wh
• Battery chemistry: Lithium iron phosphate (LiFePO₄)
• Output: 10,000W continuous / 20,000W peak
• Voltage: 120V/240V split phase or 120V/208V two of three phases
• Solar input: Up to 12,000W with dual MPPT
• Wind input: Up to 350W
• Charging: 120V AC or 208V/240V AC, plus compatible solar, wind and external generator sources
• Outlets: Four NEMA 5-20R, one TT-30R, one L14-30R and one 14-50R
• Generator dimensions: 21.8 × 8.5 × 38.5 in., excluding mounting bar
• Generator weight: 152 lb.
• Battery dimensions: 21.8 × 8.5 × 23.4 in., excluding mounting bar
• Battery weight: 213 lb.
• Certifications: ANSI/CAN/UL 1741 inverter and ANSI/CAN/UL 1973 battery

WHAT’S INCLUDED

• MyGrid 10K Gen 2 generator
• MyGrid 10K battery
• AC power cord
• Battery cable set
• Communication cable
• Two mounting and security hardware sets
• Manufacturer documentation

SHIPPING & DELIVERY

Free curbside freight delivery is included within the 48 contiguous United States, subject to safe truck access. The customer is responsible for moving the shipment from the carrier’s delivery point to its final location. Inside, garage and driveway delivery are not included. Availability and estimated lead time are confirmed when the order is placed.

INSTALLATION

Basic system setup is designed to be plug-and-play. Whole-home circuit, transfer equipment, high-voltage charging and solar integration require compatible equipment and should be completed by qualified local professionals. Confirm system, panel, circuit and connector compatibility before installation and follow the current Nature’s Generator manual and applicable electrical codes.
